Quick Answer

Specifying a cryogenic valve modification for Gulf Coast LNG service means converting a standard valve with an extended bonnet, low-temperature trim, austenitic stainless steel or specialty alloys, redesigned seats, and full BS 6364 cryogenic-type testing. The scope must define service temperature, fugitive emissions class, material traceability, and witness points before machining begins.

The Gulf Coast LNG buildout has pushed cryogenic valve demand past what most OEM lead times can absorb. Engineers and MRO planners at Sabine Pass, Corpus Christi, Freeport, and Plaquemines are increasingly converting standard ASME valves into cryogenic-capable units instead of waiting nine to fourteen months for new builds. Done correctly, a modification gives you a valve that holds tight at minus 196 degrees Celsius and meets BS 6364 with documentation that satisfies any third party inspector. Done wrong, you end up with a valve that fails type testing, a delayed commissioning, and a procurement file no one wants to sign.

Why Cryogenic Modifications Matter for Gulf Coast LNG Projects

LNG service is unforgiving. Liquefied natural gas sits at minus 162 degrees Celsius, ethylene service runs colder, and helium and nitrogen process loops can push trim into the minus 196 degree range. At those temperatures, carbon steel becomes brittle, elastomers fracture, and standard bolting loses preload. A valve that performs flawlessly at refinery temperatures will shatter or leak across the seat the moment it sees a real cold shock.

For procurement teams on a 90 day commissioning clock, the math is straightforward. A new OEM cryogenic valve quoted today may not ship until well after first gas. A field returned valve modified in a Gulf Coast shop, however, can be back in service in weeks with the same testing certificates. That is why so many Houston and Corpus Christi-based valve modification programs have absorbed work that used to flow back to European foundries.

How the Cryogenic Modification Process Works

The work itself is engineered, not improvised. A properly scoped cryogenic conversion follows a defined sequence:

• Engineering review. The existing valve drawing is studied against the target service. Body material, bolt grades, and pressure class are confirmed acceptable for cold service. If the body cannot pass low temperature Charpy impact at the design minimum, it is rejected before any machining starts.
• Extended bonnet fabrication. A cryogenic extension is welded or bolted to the bonnet so that packing stays above the frost line. Length is calculated from API 598 and BS 6364 guidance, not guessed. Too short and the packing freezes; too long and you create a stem buckling risk.
• Trim replacement. Seats, discs, stems, and gland followers are remade from 316, 316L, Inconel 625, or other alloys that retain ductility at cryogenic temperatures. Hard facing alloys are selected for differential thermal contraction, not just hardness.
• Packing and gasket conversion. Graphite based or PTFE composite packing replaces standard sets. Spiral wound gaskets are upgraded for the cold cycle. Fugitive emissions class is set during this step.
• Assembly and traceability. Every replacement component is logged against its heat number through positive material identification. Without PMI records, the modification cannot be certified.
• Cryogenic type testing. The completed valve is submerged in liquid nitrogen, pressurized, and stroked. Leakage past the seat is measured against BS 6364 limits. This is the gate. A valve that fails goes back to disassembly, not the shipping dock.

Risks, Mistakes, and What Goes Wrong in the Field

The failures we see at LNG sites almost always trace back to scoping shortcuts taken months earlier. The most expensive ones repeat across operators:

• Using the wrong base valve. A WCB body cannot be converted for cryogenic service no matter how good the trim is. The body itself will fail Charpy testing. LCC, LCB, CF8M, and CF3M are the valid starting points.
• Skipping fugitive emissions testing. EPA Subpart OOOOa and OOOOb apply to LNG facilities. A valve that passes cryogenic leak rate but has not been tested per ISO 15848 or API 624 fugitive emissions standards will not survive a regulatory audit.
• Inadequate stem length calculation. When the extended bonnet is sized off a generic chart instead of the actual insulation thickness and ambient profile, the packing area drops below freezing during operation. The packing then shrinks, contracts, and leaks methane to atmosphere.
• Missing third party witness. Many LNG owner specifications require Lloyds, BV, or ABS witness during cryogenic type test. Shops that schedule testing without coordinating the inspector cause weeks of rework when the certificate is rejected.
• No failure analysis on returned units. If a valve has been pulled from service, the root cause matters. Modifying a valve that failed due to cavitation damage without addressing the upstream cause guarantees the modified valve fails the same way.

The consequences scale with how late the mistake is found. A scoping error caught in engineering review costs a phone call. The same error caught at hydrotest costs a week. Caught at commissioning, it can delay first gas.

Why Cryogenic Valve Shops Are Not Equal

Every shop in Houston will tell you they do cryogenic work. The differences show up in three places, and procurement should pressure test each one before issuing a PO.

In-house cryogenic test capability. Many shops sub out type testing to a third party tank, which adds two to three weeks to the schedule and makes troubleshooting impossible. A shop with its own liquid nitrogen cryogenic test chamber can iterate in days, not weeks.

Machining depth. Cryogenic trim work demands multi axis CNC capability and the ability to machine alloys like Inconel and Monel. Shops without serious machining capacity end up grinding mating surfaces by hand, and the geometry suffers. Seat leakage at cold temperatures is unforgiving of out of round seats.

OEM authorization breadth. A modification that strips OEM nameplate validity creates a problem for the asset owner. Working with a shop that holds factory authorizations from the major valve OEMs protects warranty status and downstream resale value.

When to Modify and When to Buy New

• Modify when: the existing valve body has documented heat number traceability, passes low temperature impact testing on the base material, and the schedule cannot absorb an OEM lead time. Modify when an obsolete or hard to source size makes new build impractical.
• Buy new when: the existing body lacks material certification, has been exposed to hydrogen embrittlement service, or shows wall thinning from corrosion. Buy new when the body class is undersized for the LNG service pressure rating, since you cannot upclass a casting.
• What happens if you modify the wrong base valve: the converted valve will pass shop test, fail in cold service within 18 months, and the failure will not be covered by any warranty. The cost shows up as an unplanned field service call during the wrong shift.

Practical Examples Gulf Coast Engineers Will Recognize

A common scope: a refinery near La Porte sends in a fleet of 6 inch flanged gate valves originally built for warm hydrocarbon service. The operator wants them converted for an ethylene crossover line at minus 100 degrees Celsius. The shop verifies the LCC body, fabricates extended bonnets, replaces trim with 316 stainless and Stellite 6 hard facing, repacks with graphite, then runs cryogenic type test plus fugitive emissions per ISO 15848. The valves return to service in seven weeks at roughly 40 percent of new build cost.

Another scope: an LNG export facility along the Sabine River pulls a 24 inch ball valve from a feed gas header. Engineering review shows wall thinning on the body from upstream sand erosion. Modification is rejected. The owner gets a written failure analysis instead and the budget goes toward a new build, which is the right call.

Built for Gulf Coast LNG Work, Since 1961

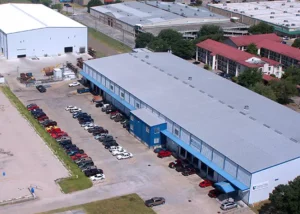

United Valve has run valve modifications out of Houston since 1961, with a 104,000 square foot facility in the heart of the Texas refining and petrochemical corridor and a Corpus Christi shop covering the lower Gulf Coast. Cryogenic valve fabrication is one of our long standing specialties, and we have produced hundreds of valves for low temperature applications across LNG, ethylene, and air separation service.

• Experience that maps to your service: degreed engineers, factory authorizations from over 40 valve OEMs, and a documented track record on cryogenic conversions for Gulf Coast LNG operators.
• Reliability you can audit: in-house NDE and pressure testing including radiography, PMI, dye penetrant, magnetic particle, and hydrostatic, all logged against the valve serial number.
• Machining and testing under one roof: five CNC machining centers, multi axis capability, eight overhead bridge cranes with hook heights to 37 feet, and a cryogenic test chamber sized for large diameter LNG valves.
• Coverage where the work is: Houston and Corpus Christi facilities supporting the full Gulf Coast LNG corridor, with field service crews available for site work where the valve cannot leave the rack.

Frequently Asked Questions

For a scoped quote on a cryogenic conversion or a fleet evaluation across an LNG facility, contact the United Valve engineering team at the Houston shop. Bring the valve tag list, service conditions, and target on stream date, and the response will include base material acceptability, testing scope, and a realistic schedule.
